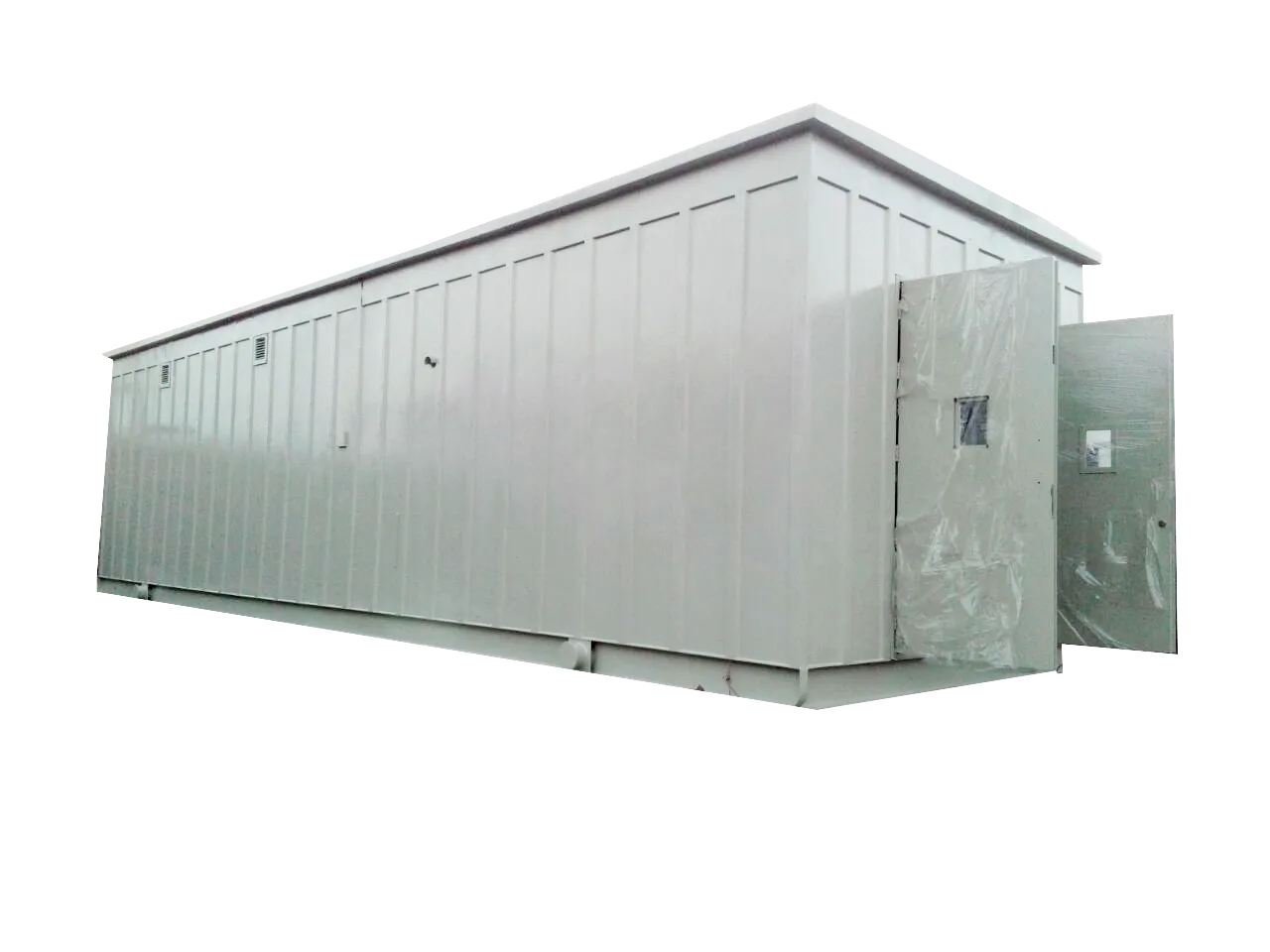

Packaged Substation/ E-House
Containerized Power Distribution Solutions
Since our inception, we are in the field of Design and Manufacturing of Acoustically treated Gas Turbine Enclosures, supplying to PSU such as BHEL. With such experience and combining our in-depth knowledge of Power Distribution system, we developed and supplied Acoustically treated Containerized Package substation to our customers in the Middle East.
- Acoustically Treated
- Containerized Design
- Fire Rated
Technical specifications
- Outer Skin
- Corrugated Sheet Steel (Metalized & Painted)
- Compartments
- RMU, Transformer, LV Panel (Internally Partitioned)
- Doors
- Fire Rated with Panic Bars
- Floor
- Chequered MS Plate or Aluminium Plate
- Insulation
- Optional Rockwool Insulation
- Lighting
- Outdoor Bulk Head Lamps
- Switches
- IP65 Rated Outdoor Type
- Roof
- Detachable Type (Optional)
Key features
- Ring Main Unit (RMU) housing
- Distribution Transformer with 0.415kV output
- LV Distribution panel/ Feeder Pillar
- Acoustically treated containerized design
- Fire rated doors with panic bars
- Safe cable routing between compartments
- Copper earth bar throughout length
- Perimeter lighting with outdoor switches
Applications
- Middle East Markets
- Power Distribution Networks
- Industrial Facilities
- Commercial Complexes
- Oil & Gas Industry
- Mining Operations
- Remote Power Distribution
- Temporary Power Solutions
Standards and certifications
- IEC 61439-1 & 2
- ASTA Certified
- CPRI Approved
- ISO 9001:2015
Benefits
- Acoustically Treated Design
- Containerized Solution
- Fire Rated Safety
- Easy Transportation
Photos
Package Substation Design & Features

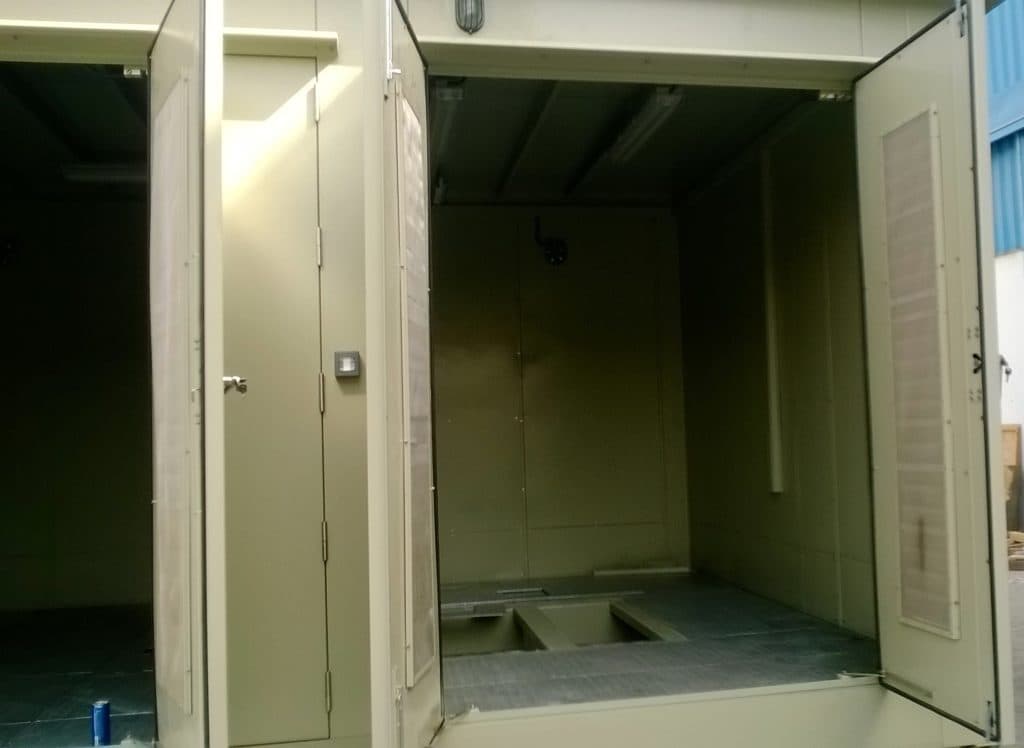

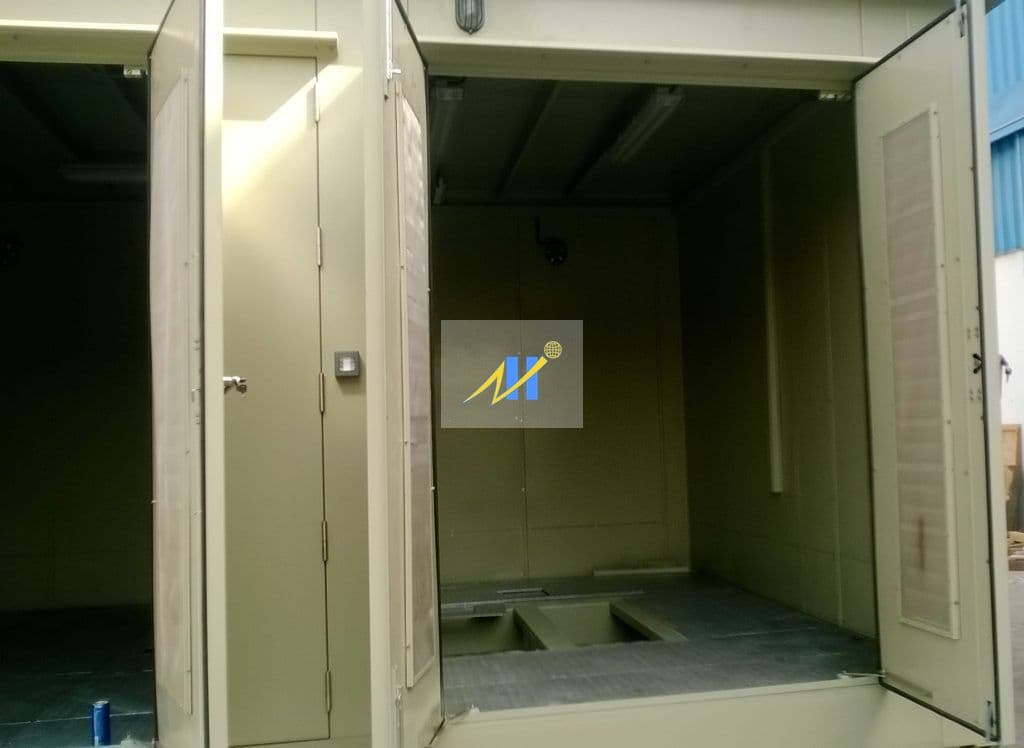

Our Package Substation is designed to house Ring Main Unit, Distribution Transformer, and LV Distribution panel with advanced safety and operational features.
- Acoustically Treated
- Designed with acoustic treatment for noise reduction, making it suitable for residential and commercial areas where noise control is essential.
- Containerized Design
- Complete containerized solution with RMU, transformer, and LV panel in a single unit for easy transportation and installation at remote sites.
- Fire Rated Safety
- Fire rated doors with panic bars and safe cable routing between compartments ensure maximum safety for operators and equipment protection.
Where it sits in the power chain
Ready for Containerized Power Solutions?
Contact our engineering team for customized Package Substation solutions tailored to your power distribution requirements.
