Automatic Capacitor Bank Panels
Power Factor Correction Solutions
A Hybrid and Passive APFC system can be offered up to 400kVAR. We can design suitable Harmonic filter panels as per field requirements. For existing/proposed load ratings, suitable capacitance rating can be calculated to maintain and achieve 0.95 or higher power factor throughout the operation cycle of the machine/system. Smaller size APFC panels are also manufactured with a busbar system to avoid any mishaps from messy wiring within the panel.
- Power Factor Correction
- Harmonic Filtering
- Energy Efficiency
Technical specifications
- Type
- Hybrid and Passive Capacitor banks
- Enclosure and Busbar System
- 3 Phase, 4 Wire, 415V AC, 50 Hz system with Earthing
- Rating
- Up to 400kVAr
- Short Circuit Rating
- 50kA rated for 1 Second
- Degree of Protection
- IP31
- Power Factor
- 0.95 or higher power factor
- Harmonic Filter
- Suitable Harmonic filter panels as per field requirements
- Busbar System
- Smaller size APFC panels with busbar system
Key features
- Hybrid and Passive APFC system up to 400kVAR
- Suitable Harmonic filter panels design
- 0.95 or higher power factor maintenance
- Capacitance rating calculation for load ratings
- Busbar system for smaller size panels
- Messy wiring prevention
- Field requirement based design
- Operation cycle optimization
Applications
- Power Factor Correction
- Industrial Power Systems
- Commercial Buildings
- Manufacturing Facilities
- Data Centers
- Hospitals and Healthcare
- Educational Institutions
- Shopping Centers
Standards and certifications
- IEC 61439-1 & 2
- ASTA Certified
- CPRI Approved
- ISO 9001:2015
Benefits
- Power Factor Optimization
- Energy Efficiency
- Harmonic Filtering
- Cost Savings

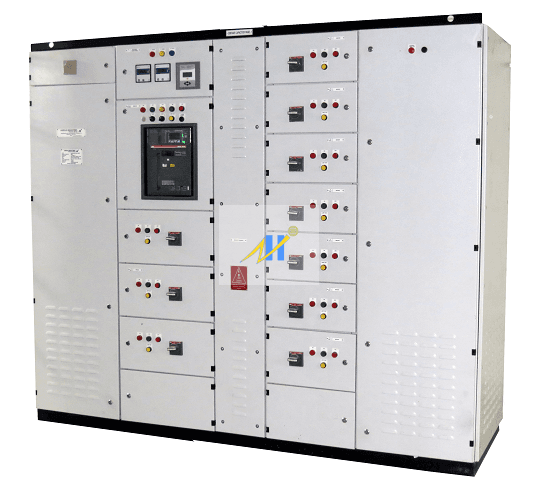

Photos
APFC Panels Design & Features
A Hybrid and Passive APFC system can be offered up to 400kVAR. We can design suitable Harmonic filter panels as per field requirements.
- Power Factor Correction
- For existing/proposed load ratings, suitable capacitance rating can be calculated to maintain and achieve 0.95 or higher power factor.
- Harmonic Filtering
- We can design suitable Harmonic filter panels as per field requirements for optimal power quality.
- Energy Efficiency
- Smaller size APFC panels are manufactured with a busbar system to avoid any mishaps from messy wiring within the panel.
Where it sits in the power chain
Ready for APFC Solutions?
Contact our engineering team for customized Automatic Power Factor Correction solutions tailored to your power quality requirements.
