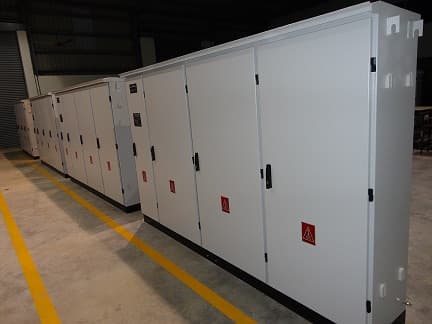

Feeder Pillars

Our Feeder pillars are of compact design while using space saving fuse switch units such as Vertical Strip Fuse Units.

These units are designed for Outdoor type use with strong and robust construction. Feeder Pillars with GRP enclosures can also be supplied on request.

ENCLOSURE AND BUSBAR SYSTEM3 Phase, 4 Wire, 415V AC, 50 Hz system with Earthing
CURRENT RATINGUpto 1600A
SHORT
CIRCUIT RATING
from 25kA upto 50kA rated for 1 Second
DEGREE OF PROTECTIONIP54/ IP55 – INDOOR and OUTDOOR
TYPE OF CONSTRUCTIONForm 2b Non – Compartmentalized – SINGLE DOOR/ DOUBLE DOOR
MOUNTINGFree Standing, Floor mounted
INCOMER DEVICEDrawout/ Fixed – ACB/ MCCB
OUTGOING DEVICESFixed – MCCB/ HRC Fuse units
Vertical Strip Fuse way units
ENCLOSURE MATERIALCRCA/ GI Sheet Steel as per applicable IS Standards
BUSBAR MATERIALETP Grade Tinned Copper OR EC Grade Aluminium as per applicable IS Standards
POWDER COATINGSpecial Painting treatment and application to ensure Salt spray endurance of 1000 Hours. Customized painting process as per Customer request shall also be offered.
1600A Feeder Pillar

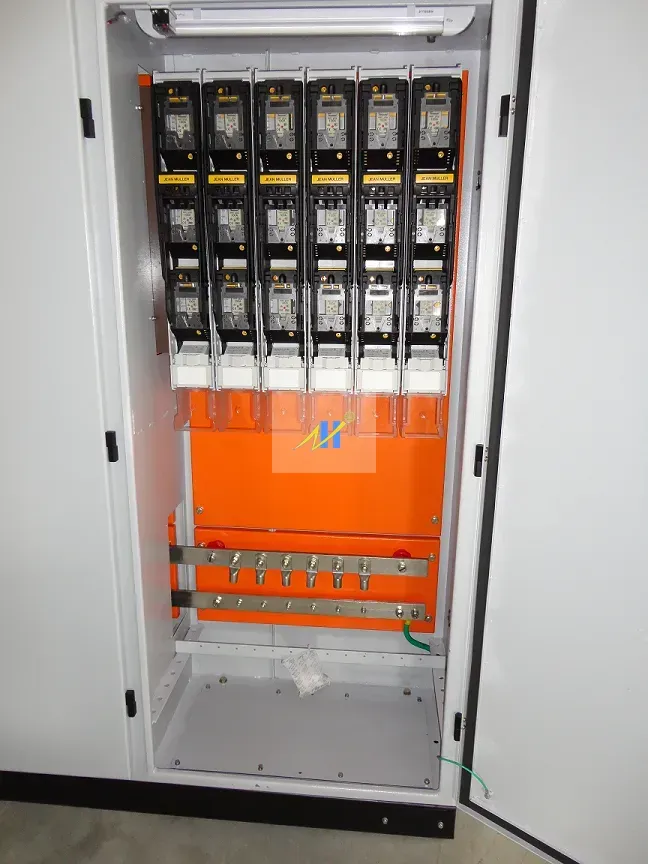

Feeder Pillar with Vertical Strip Fuse Way Units

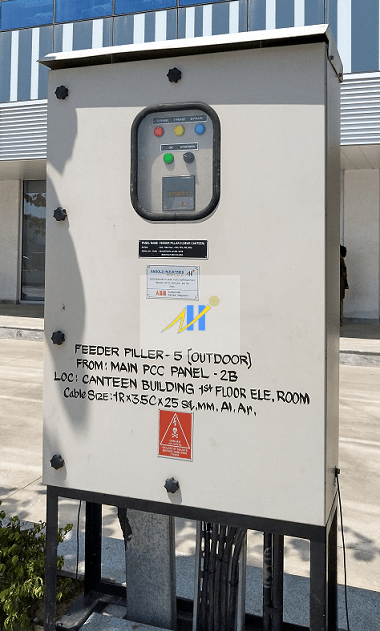

Outdoor installed Feeder Pillar

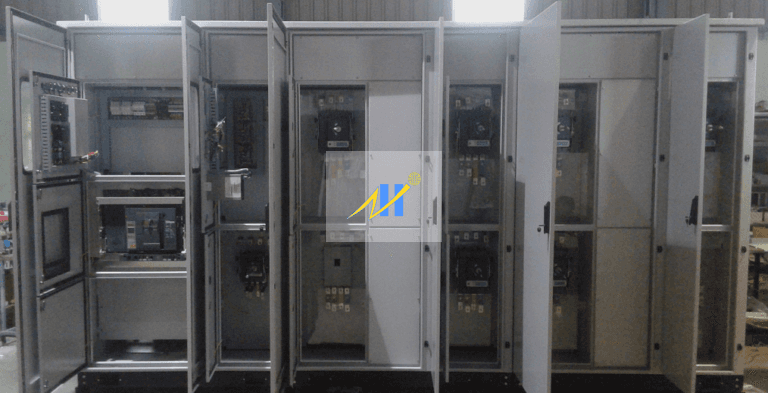

Double door type Feeder Pillar
